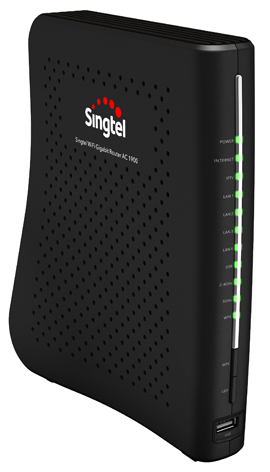

AC Elite (AC1900)

View guide

Supported Services

Fibre Broadband

Singtel TV

Wireless Connection Mode

*Dependent on broadband subscription 

B Mode: Up to 11 mbps

G Mode: Up to 20 mbps

N (2.4GHz) Mode: 40-70mbps

N (5GHz) Mode: 70-120mbps

AC Mode: 70-230mbps

WPS Push Button

Yes (enabled by default)

2.4GHz

Yes (enabled by default)

5GHz

Yes (enabled by default)

Mac Filtering

Yes

Gigabit Ethernet LAN

Voice Port

Not applicable

USB Host Support

Yes

DDNS

Yes

The colours of each LED light on your AC Elite (AC1900) router have different meanings. Use this guide to understand more.

POWER LED

No light: No power is supplied to the modem

Red: Error on device

Green: Connected to a power supply

Green (Blinking): Booting up

Amber (Blinking): Firmware upgrading in progress

Internet LED

No light: No internet connection

Green: Internet connection is functioning

Red: Internet connection failure

IPTV

No light: No connection detected

Red: Error in connection between Router and Set-Top Box

Amber: Unable to obtain an IP address for Set-Top Box

Amber (Blinking): Error in connection between Optical Network Terminal and Router

Green: Set-Top Box connection has been established

LAN (1-4)

No light: No LAN connection on the port

Flashing: The indicated LAN port is sending or receiving data

Green: Ethernet connection has been established

Follow these steps to check the information of the devices connected to your network.

1. Visit http://192.168.1.254 to view your router configuration page.

2. Scroll down to Device Info and Internet Connection to find the information.

Follow these steps to check the information of the devices connected to your network.

1. Visit http://192.168.1.254 to view your router configuration page.

2. Scroll down to Device Info and Internet Connection to find the information.

3. By default, you will see the 2.4GHz and 5GHz wireless settings, Band Steering and WPS feature.

4. To apply any changes made to your Wireless settings, click on the Apply button or cancel to disregard the changes.

For technical assistance with your device, please call 1688.
