Askey AP5100W

1. Before you start, check that you have these items.

2. Locate the QR Code at the bottom of the device; you will be asked to scan it during installation.

3. Download and install the Askey WiFi Mesh app. Launch the app and follow the installation instructions.

Overview

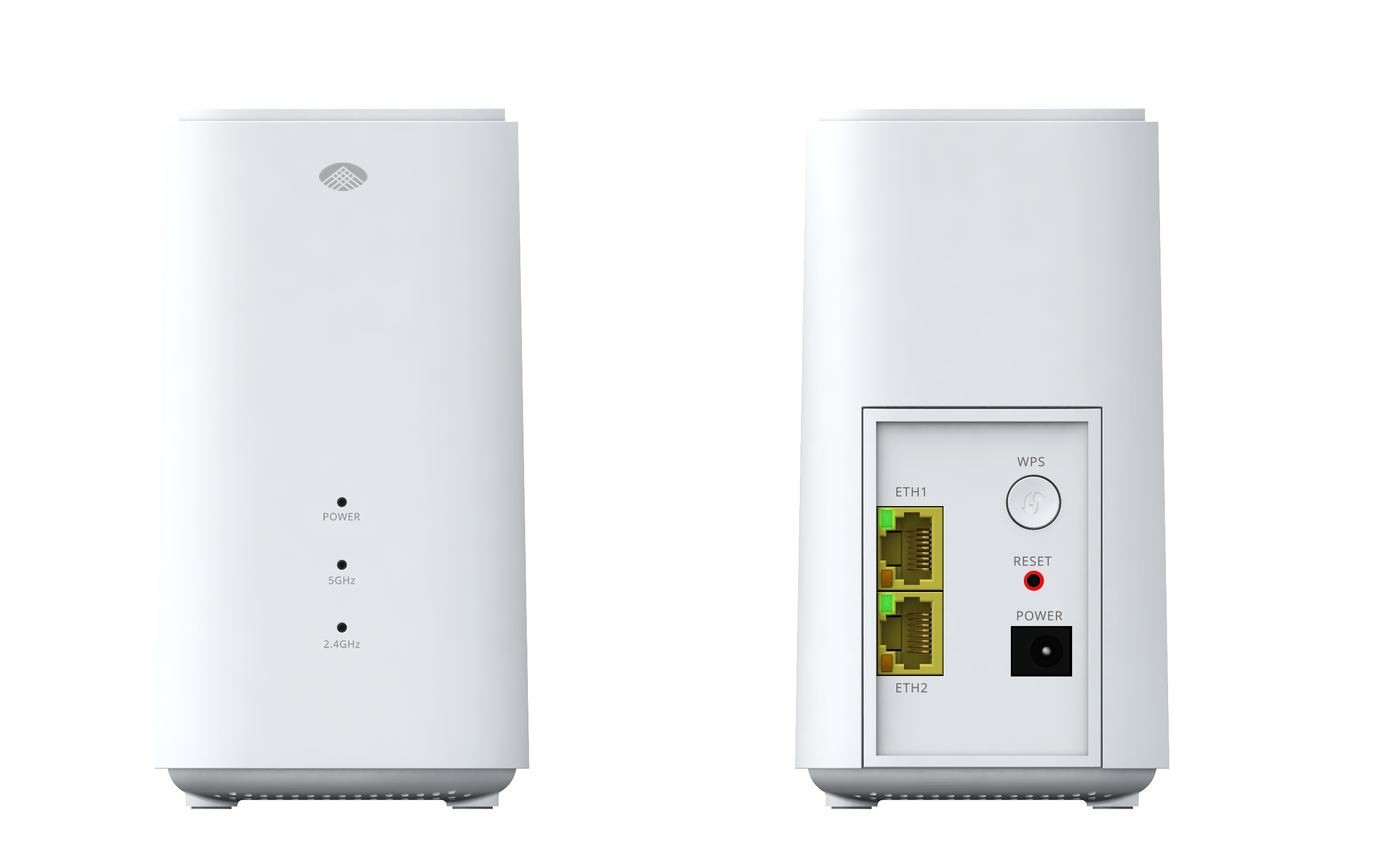

Device Buttons and Indicators

POWER LED

No light: No power is supplied to the modem

Red: Error on device

Green: Connected to a power supply

Green (Blinking): Firmware upgrading in progress

2.4GHz LED

No light: No internet connection

Green: Internet connection is functioning

5GHz LED

No light: No connection detected

Solid Red: Mesh connection strength is weak, move devices closer

Blinking Red: Not connected to a Mesh network

Blinking Green: WPS Registration / Pairing in progress

Green: Connection is working

LAN (1-2)

No light: No LAN connection on the port

Green (Flashing): The indicated LAN port is sending or receiving data

Green: Ethernet connection has been established

Yellow: Connected at 1Gbps Ethernet connection

Dark Yellow: Connected at 10/100 Mbps Ethernet connection

For technical assistance with your device, please call 1688. Singtel will provide security updates up to 31 May 2025.
