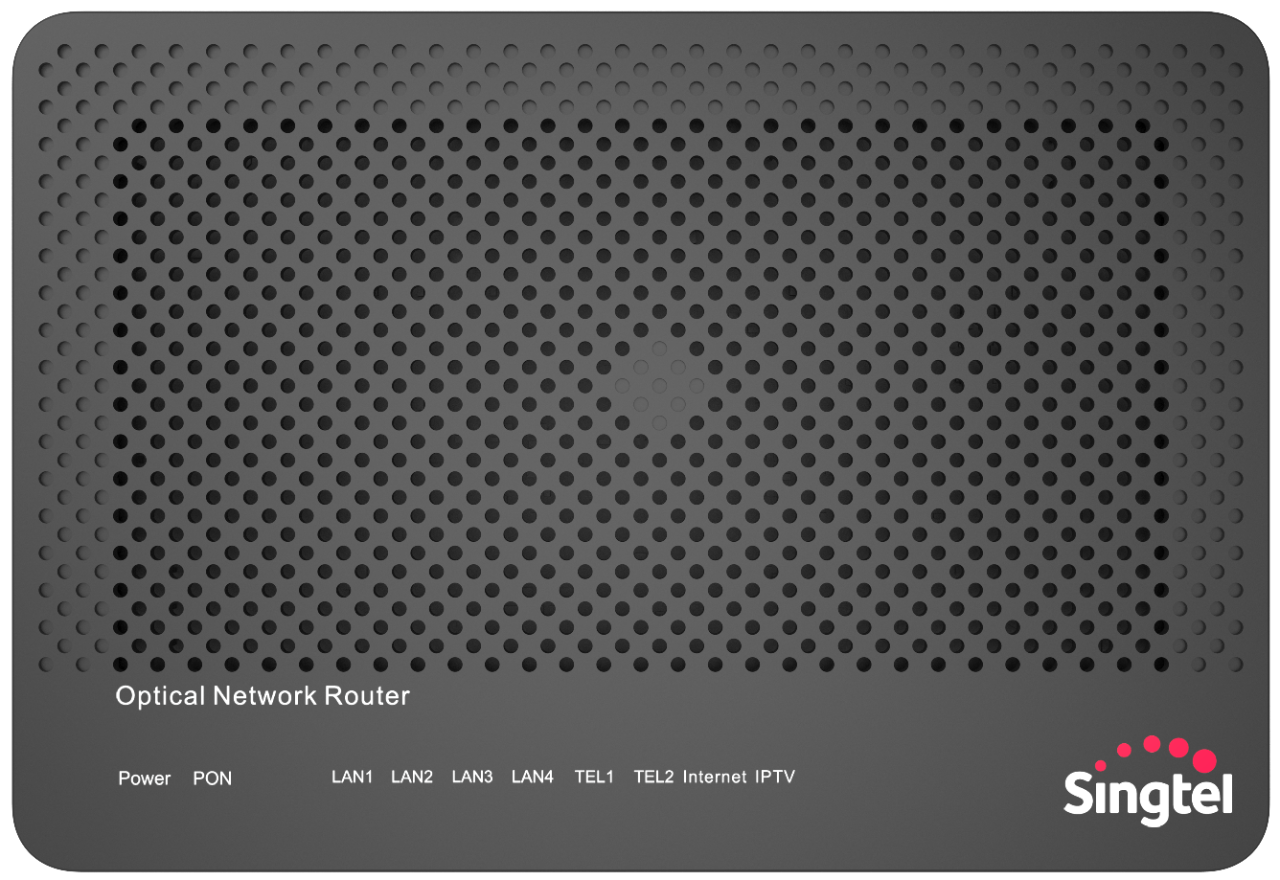

The colours of each LED light on your Huawei HG8240T5 Optical Network Router (ONR) have different meanings. Use this guide to understand more.

POWER LED:

• No light: No power is supplied to the ONR.
  Check the power supply and ensure that the power adapter is secured.
• Blinking Red before turning to green: Firmware update
• Blinking Red: Hardware check failed or failed to start
• Green: Connected to a power supply

PON:

• No light: Fibre connection is down
• Red: Optical signals issue, please reconnect the fibre port
• Blinking: Fibre connection is setting up
• Green: Fibre connection is up

TEL 1-2:

• No light: Telephone is down
• Blinking: Telephone is up and the phone is off the hook or ringing
• Green: Telephone is up

LAN 1-4:

• No light: No ethernet connection.
• Green: Connected to an ethernet device.
• Blinking Green: Data is transmitting or receiving between devices

Internet

• Green: Internet connection is up
• Blinking Green: Data is being transmitted
• No light: Internet service is down

IPTV

• Green: Singtel TV connection is working
• Blinking: Singtel TV connection unable to obtain IP address
• No light: No Singtel TV Set-top Box detected
